High Temperature Steam Integrated Pressure Reduction Station

usage : Industrial

Fuel : Electric

Product name : High-temperature steam integrated pressure reduction station

structure : pipe

key selling points : Easy To Operate, High-Accuracy, High Safety Level

Material : Stainless Steel, Carbon Steel

output : Steam

machinery test report : Provided

Application : Ironing Plastic Foam

Style : Horizontal

dimension(l*w*h) : 2000mm(78.74in)

Price : $1,800-2,000 / set

pressure : High Pressure

Warranty : 1 Year

Weight (KG) : 350

MOQ : 1 set

core components : valve

Place of Origin : Henan, China

type : Natural Circulation

Brand Name : AIXBOILER

video outgoing-inspection : Provided

Thermal efficiency : 99%

Contact Now

Product descriptions from the supplier

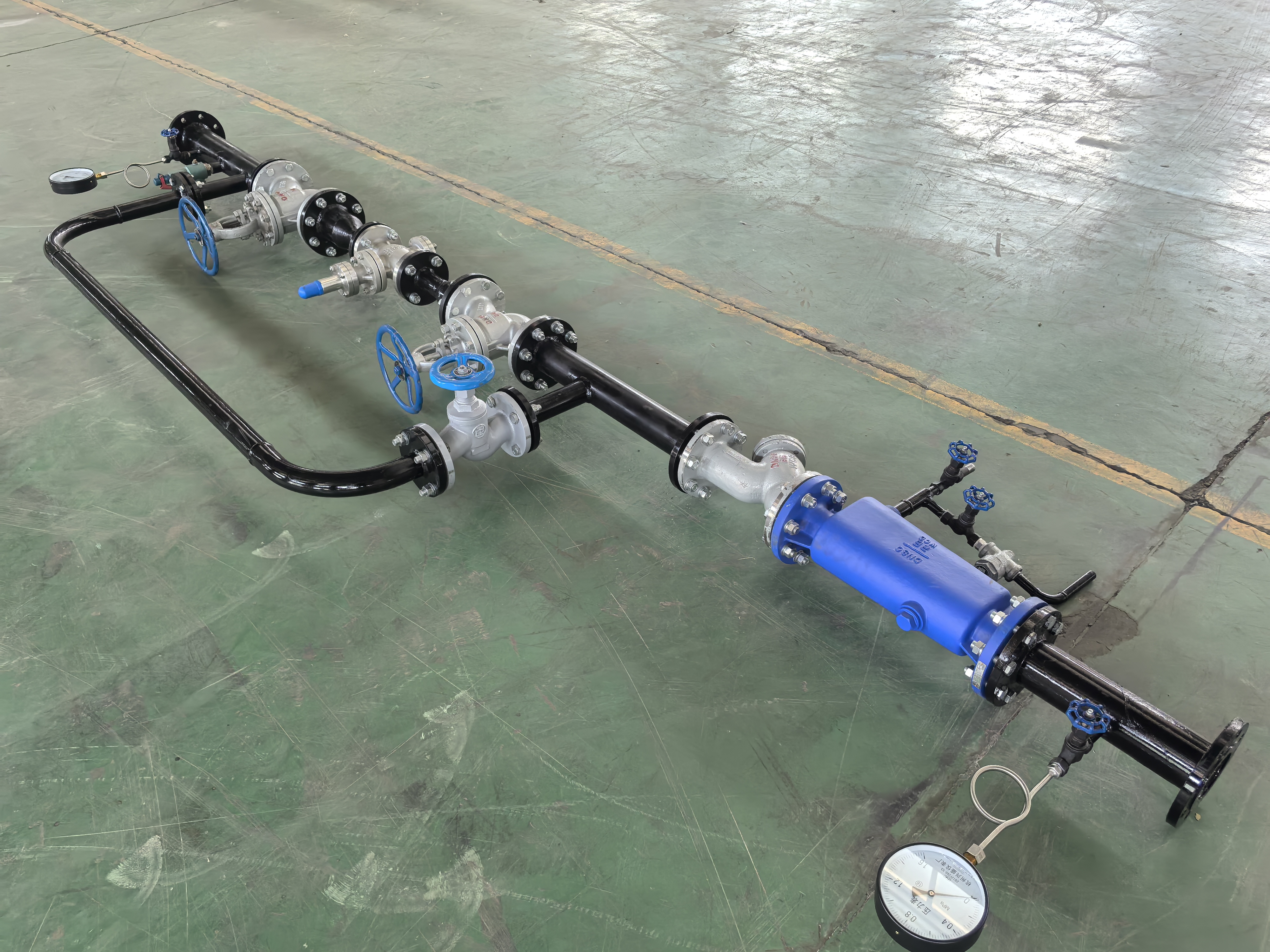

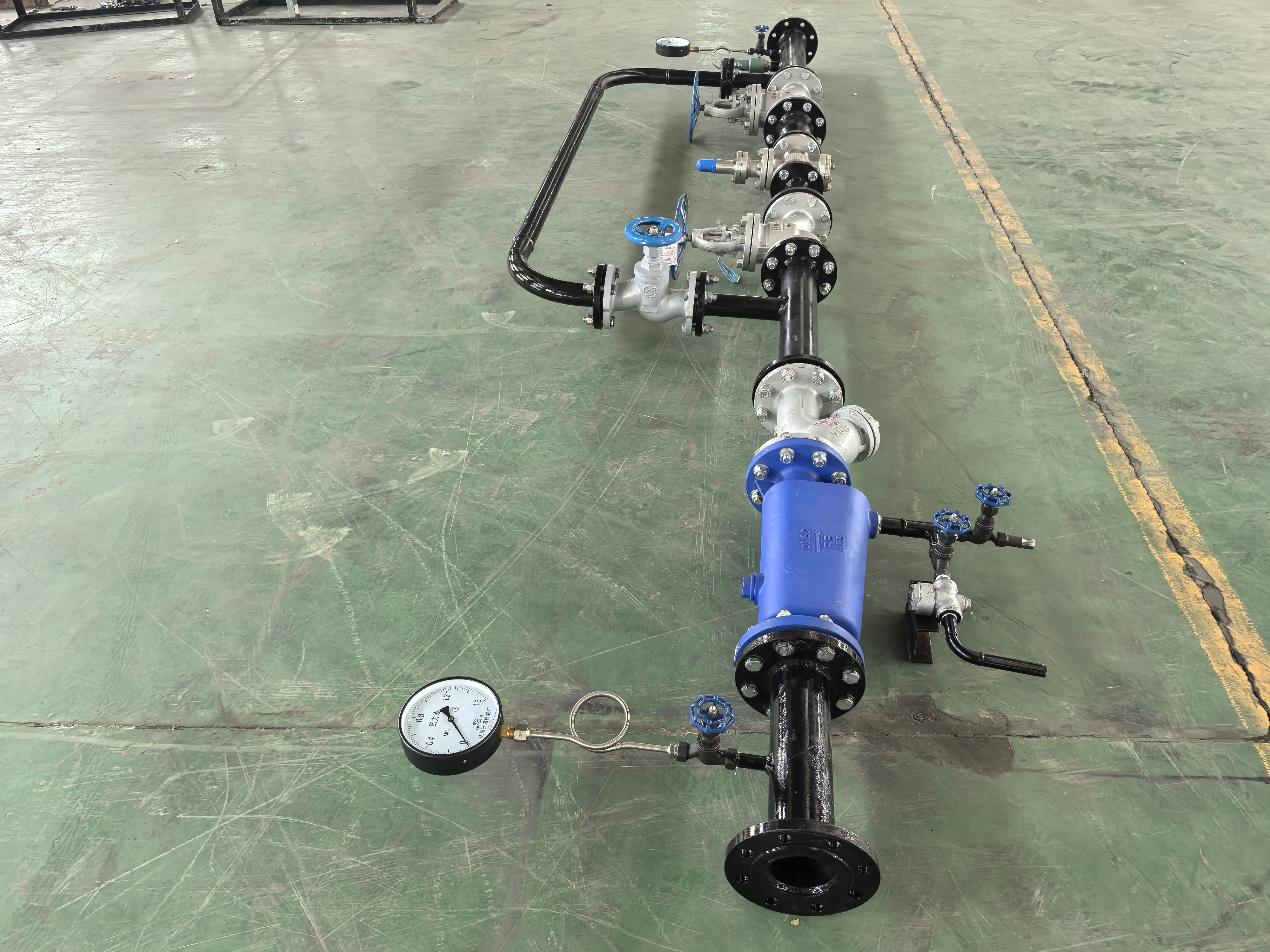

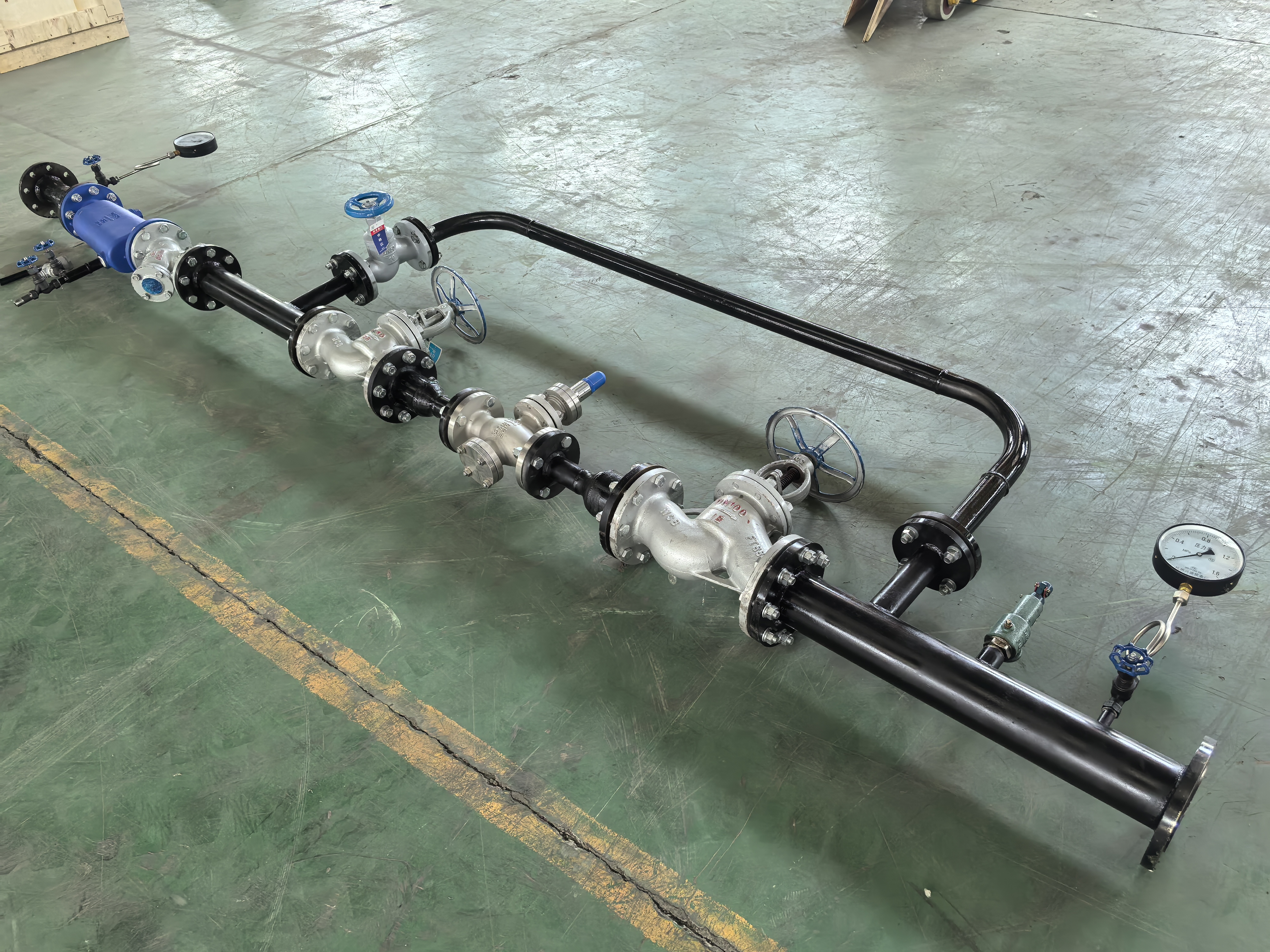

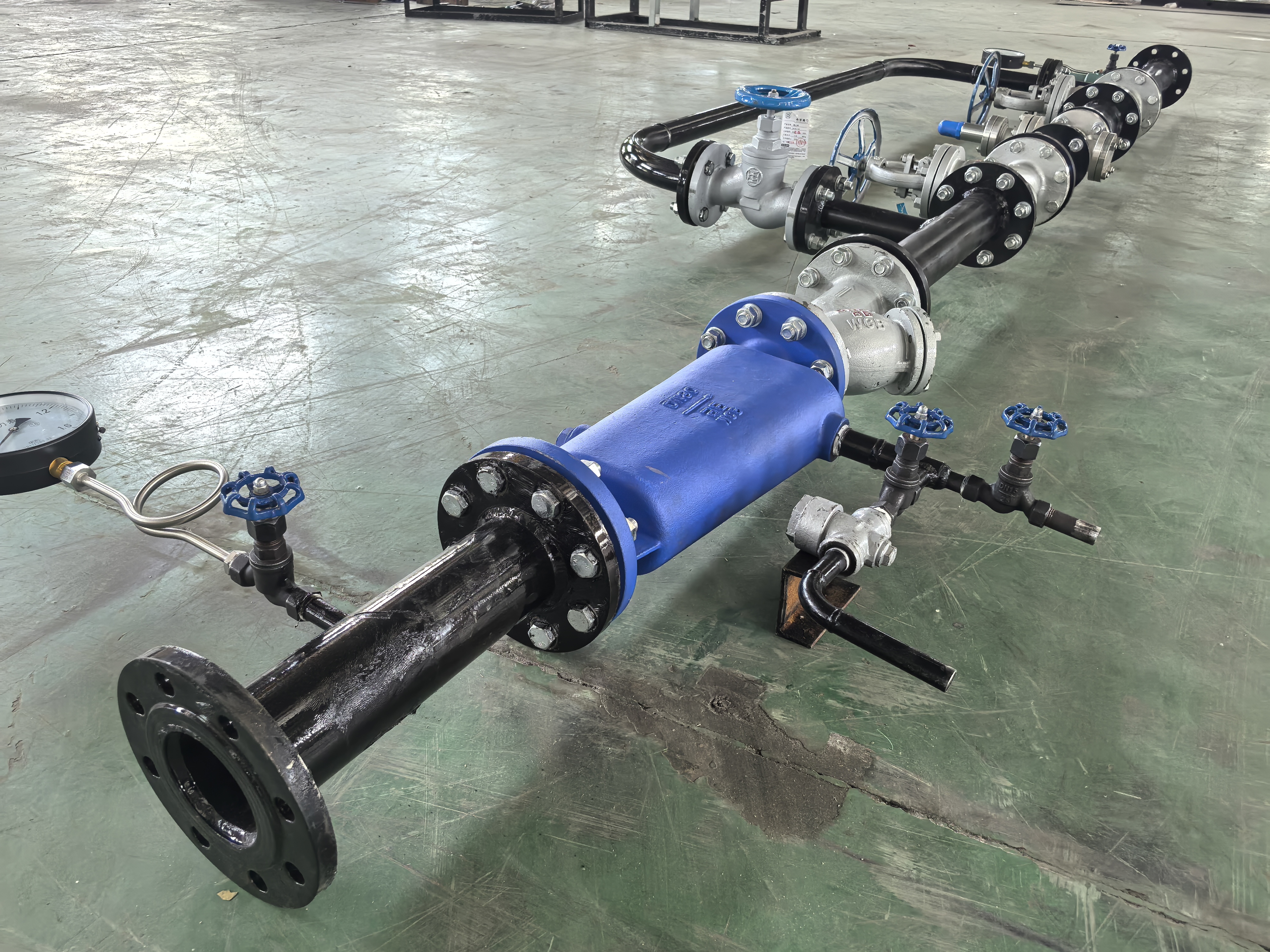

This high-temperature steam integrated pressure reduction station is a complete skid-mounted unit, composed of five core components:

1. Pipeline & Valve Assembly It includes inlet shut-off valve, Y-type filter, steam-water separator, pressure reducing valve, desuperheating water regulating valve, bypass valve, outlet shut-off valve, drain valve and safety relief valve. It completes steam cutoff, filtration, pressure regulation, drainage and overpressure protection.

2. Desuperheating Water System It consists of demineralized water filter, check valve and high-pressure atomizing nozzle. It provides purified cooling water and realizes steam desuperheating through fine water atomization.

3. Instrumentation Components It is equipped with pressure transmitters, temperature sensors, local pressure and temperature gauges. It monitors real-time steam parameters and outputs control signals.

4. Electric Control System It contains PLC control cabinet and electric/pneumatic actuators. It realizes automatic closed-loop control and safety interlock protection. Skid-mounted Steel Base All equipment and pipelines are pre-assembled on an integral steel skid for modular and quick field installation.

High Temperature Steam Integrated Pressure Reduction Station
High Temperature Steam Integrated Pressure Reduction Station
High Temperature Steam Integrated Pressure Reduction Station
High Temperature Steam Integrated Pressure Reduction Station
High Temperature Steam Integrated Pressure Reduction Station
High Temperature Steam Integrated Pressure Reduction Station
High Temperature Steam Integrated Pressure Reduction Station
High Temperature Steam Integrated Pressure Reduction Station
About this supplier

Henan AIX Equipment Co., Ltd. is a leading boiler manufacturer established in 2022, specializing in high-end industrial steam boilers. With 51-100 employees, the company exports to 80+ countries, focusing on natural gas and diesel dual-fuel boilers. It adheres to GB/T standards, employs advanced welding and testing processes, and holds over 60 patents, positioning itself as a top-tier R&D and manufacturing entity in the industry.
