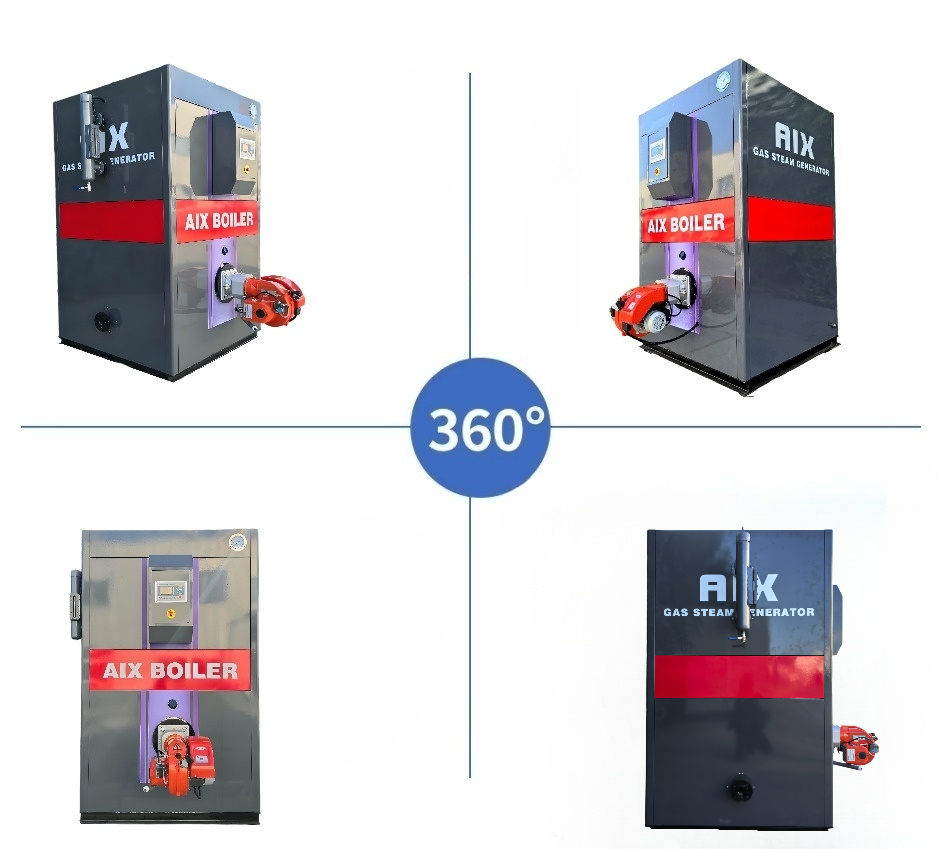

Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving

pressure : Max. 1.25MPa

Warranty : 1 Year

Weight (KG) : 4000

Material : Stainless Steel, Carbon Steel

Price : $2,800-3,200 / set

machinery test report : Provided

Thermal efficiency : 98%

usage : Industrial

Fuel : Oil and gas

Product name : WNS Steam Boiler

structure : Fire Tube

key selling points : Automatic, High-Accuracy, High Safety Level, Energy Saving, Accurate Temperature Control

Brand Name : AIXBOILER

core components : PLC, Pump, Pressure Vessel

Place of Origin : Henan, China

Color : Customer's Requirement

Item : Heating Steam Generator

Style : VERTICAL

dimension(l*w*h) : 5.8m*2.7m*2.5m(19.03ft*8.86ft*8.20ft)

Manufacturer : 30 Years History

video outgoing-inspection : Provided

Function : Multifunctional

MOQ : 1 set

output : Steam

type : Natural Circulation

Capacity : 1-3

Contact Now

Product descriptions from the supplier
Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving
Boiler and accessories details
Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving

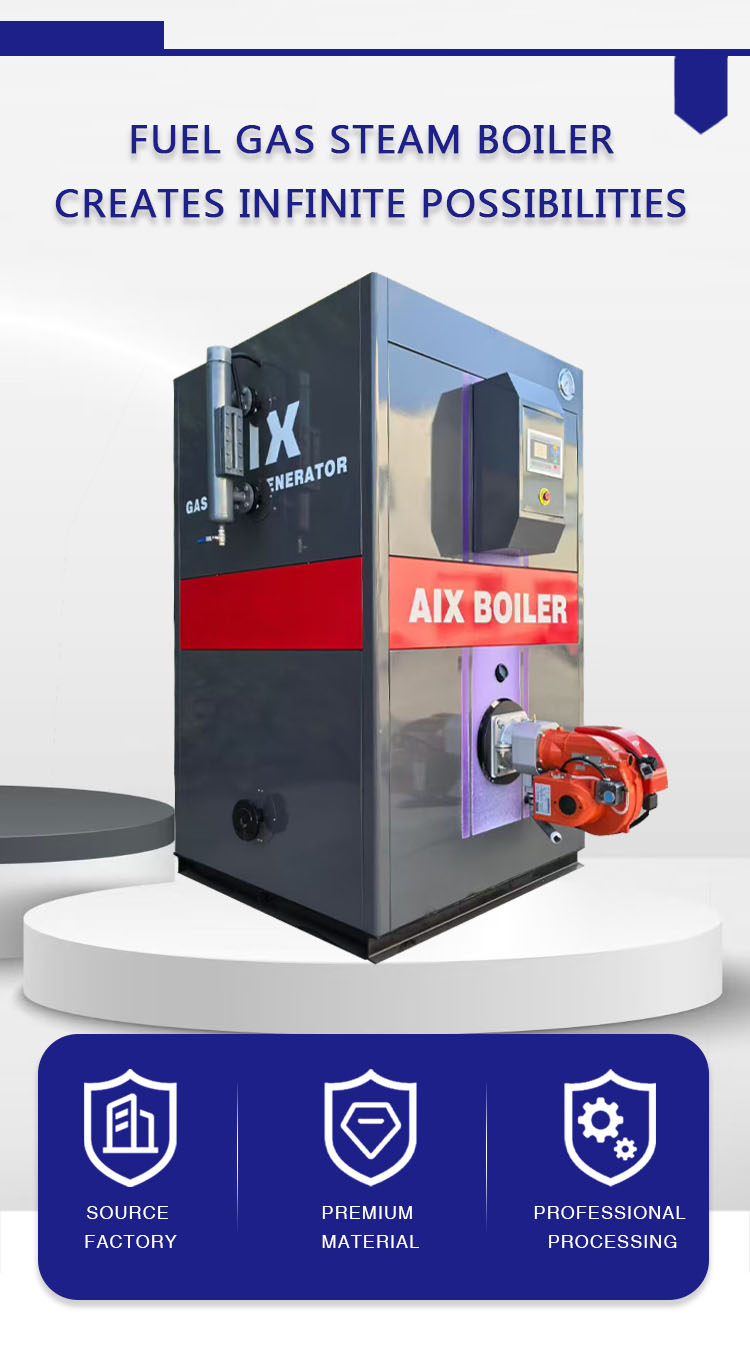

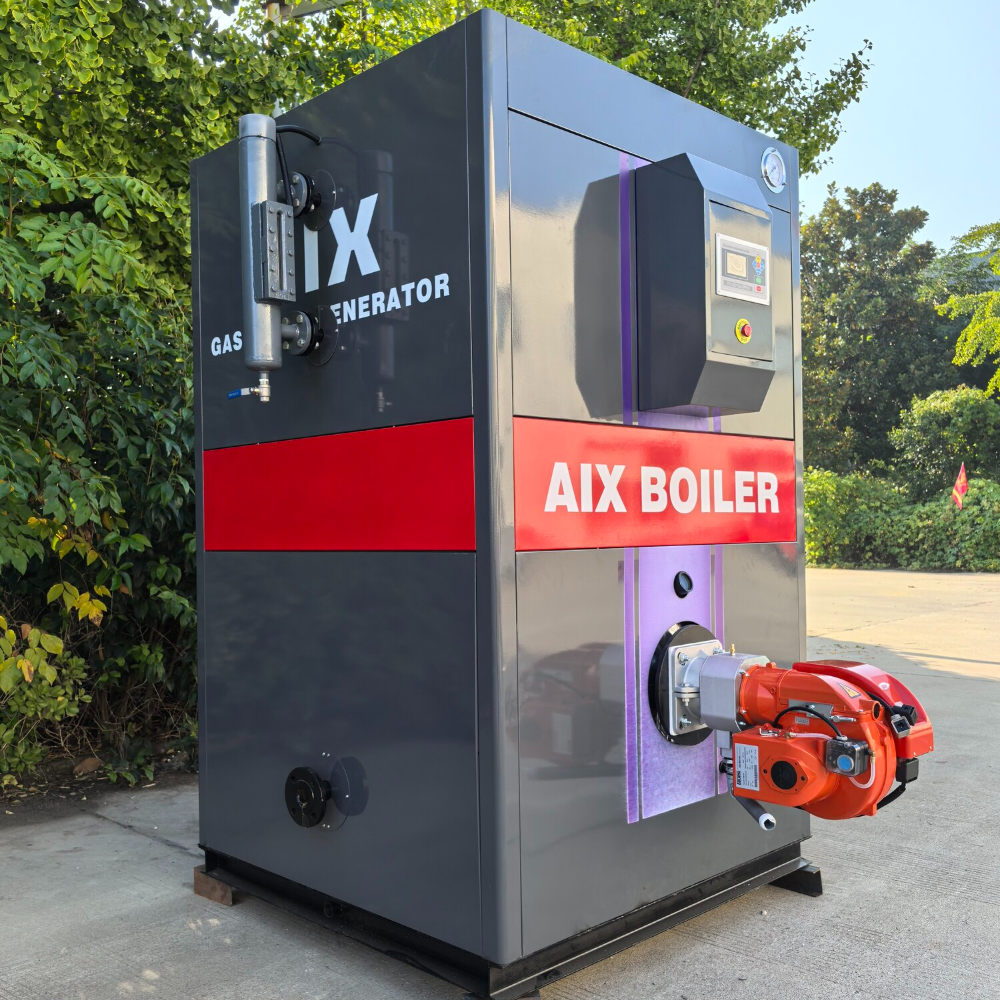

Vertical fire gas Boiler Introduction
After precise calculation by our professional engineers, while ensuring the boiler's output, we have minimized the boiler's floor
space to the greatest extent, saving valuable floor space and investment for users.
The boiler has sufficient heating area, fully absorbing effective heat, with low flue gas temperature and low heat loss, ensuring
sufficient output and large radiant heating area. It produces steam quickly and has high steam quality.
Due to the characteristics of the LSS series boilers, from cold state operation to full load, it only takes 20 minutes. This is
suitable for working conditions that require frequent startups, enabling users to provide steam promptly and effectively. Steam
separation uses an internal steam-water separator inside the boiler drum for separation, ensuring the steam dryness.
Pressure and water level protection are reliable and have high safety performance: The boiler's volume space is small, so the
damage it may cause is much less than that of other boilers. Moreover, with multiple control and protection measures such as
pressure and water level, as well as over temperature protection, its safety performance is even higher.
Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving
Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving
Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving
Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving
Accessories
Model
Rated Capacity (t/h)
Rated Pressure (Mpa)
Rated Temperature(c)
Maximum transport weight of boiler(t)
Maximumtransport size of boiler
(mm)
Fuel LPG Consumption
(Kg/h)
Fuel diesel/ oil Consumption
(Kg/h)
Fuel Nature /gas Consumption
(Kg/h)
LHS0.05
0.05
0.4
151
0.37
700x650x1700
6.45
8.2
10.2
LHS0.1
0.1
0.59
800x750 x2000
13
11.3
13.6
LHS0.2
0.2
0.4~0.7
151~170
0.68
1000x950x2000
19.4
15.6
18.7
LHS0.3
0.3
0.83
1100x1050x2000
25.6
22.5
26.8
LHS0.5
0.5
1.07
1100x1050x2000
32
32.5
36.8
LHS0.7
0.7
1.45
1200x1150x2200
50
40.6
48.5
LHS1
1
1.78
1300x1250x2450
65
45.9
65.3
LHS1.5
1.5
1.9
1780x1600x3200
97
78.4
102.1
LHS2
2
5.2
2000x2000x4000
130
91.8
130.6
Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving
Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving
Company Profile
Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving
AlX BOlLER is a brand under Henan Shijie Industrial Equipment Co., Ltd
The company mainly engages in the research and development,manu-facturing, thermal energy technology training, and import and
exporttrade of mid to high end boilers, pressure vessels, andindustrial equip-ment. Over the course of 40 years of research and
development, company has over 60 inventions and new patented technolo-gies, and its research and development capabilities are among the top inthe industry.
Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving
Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving
Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving
Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving
Vertical Steam Boiler 98% Efficiency Fully Automatic Fast Pressure Fuel Saving
FAQ
Q1: How do you quickly get the best price?
1). We need to know the capacity of the boiler, the fuel you plan to use, and your steam pressure, Yes, then wecan confirm the boiler model.
2). Customers need to provide us with your name, email address, and
company name, and we will immediatelysend you a price list. Moreover, if you use WhatsApp, Skype, or Wechat, you can provide us with your iD, which will facilitate ourcommunication
Q2: Why did you choose us?
1). 40 years of boiler manufacturing experience
and 10 years of export experience. A-level boiler factory.
2). Free replacement of parts for one year, lifetime maintenance of the
host, except for improper operation.
Q3: What is the service life of your boiler?
The typical desian lifespan of a boiler is 15 years, but with proper operation and good maintenance, theoperational life span of the boiler can reach 20-30 years.
Q4: Can you assist us with installation and operation training?
Yes, our company will provide drawings and operation manuals. Our engineers can also provide technicalsupport online.
Q5: Delivery time?
We have brand new inventory products that are usually shipped within 15-30 days. Please contact the salesengineer to confirm the specific time.
Q6: Boiler maintenance period
Check every 2-3 weeks, mainly inspecting valves, pipelines, and flanges. lf there are any faults,repair them in atimely manner. Every time, a comprehensive inspection and repair must be conducted.
